Region

Shoulder

The most mobile joint in the body, the shoulder blade that floats on the ribcage behind it, and everything that moves both.

15 structures · 14 muscles · 1 joint

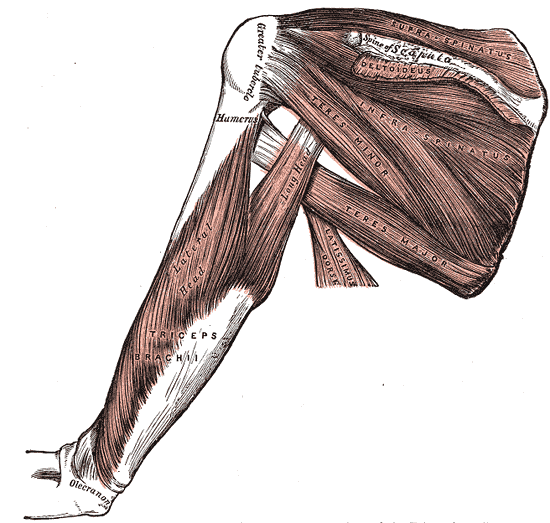

The back of the shoulder blade: supraspinatus, infraspinatus and the two teres muscles, with deltoid cut away.

Muscles on the dorsum of the scapula, and the Triceps brachii.

That is the plate’s own caption, as printed in the 1918 edition.

Henry Vandyke Carter, plate 412 of Anatomy of the Human Body (Henry Gray, 1918). Public domain — file on Wikimedia Commons.

Bone structure

  • Clavicle
  • Scapula
  • Humerus (upper end)

Key functions

  • Shoulder abduction
  • Shoulder flexion
  • Shoulder extension
  • Shoulder rotation
  • Shoulder external rotation
  • Shoulder stabilisation
  • Shoulder adduction
  • Shoulder internal rotation
  • Scapular elevation
  • Scapular downward rotation
  • Neck sidebending
  • Scapular depression
  • Scapular protraction
  • Scapular retraction
  • Scapular upward rotation
  • Scapular stabilisation
  • Circumduction

Muscle structure

Joints

Tendons and attachments

Deltoid
from Lateral third of the clavicle, the acromion, and the spine of the scapula
to Deltoid tuberosity of the humerus
Infraspinatus
from Infraspinous fossa of the scapula
to Middle facet of the greater tubercle of the humerus
Latissimus dorsi
from Spinous processes of the lower thoracic and all lumbar vertebrae, sacrum, iliac crest and lower ribs, via the thoracolumbar fascia
to Floor of the intertubercular groove of the humerus
Levator scapulae
from Transverse processes of the first four cervical vertebrae
to Medial border of the scapula, above the spine of the scapula
Pectoralis major
from Medial clavicle (clavicular head) and the sternum and upper costal cartilages (sternocostal head)
to Lateral lip of the intertubercular groove of the humerus
Pectoralis minor
from Third, fourth and fifth ribs, near their cartilages
to Coracoid process of the scapula
Rhomboid major
from Spinous processes of the second to fifth thoracic vertebrae
to Medial border of the scapula, below the spine of the scapula
Rhomboid minor
from Nuchal ligament and the spinous processes of the seventh cervical and first thoracic vertebrae
to Medial border of the scapula, at the root of the scapular spine
Serratus anterior
from Outer surfaces of the upper eight or nine ribs
to Medial border of the scapula, on its costal surface
Subscapularis
from Subscapular fossa — the entire front surface of the scapula
to Lesser tubercle of the humerus
Supraspinatus
from Supraspinous fossa of the scapula
to Superior facet of the greater tubercle of the humerus
Teres major
from Lower third of the lateral border and inferior angle of the scapula
to Medial lip of the intertubercular groove of the humerus
Teres minor
from Upper two-thirds of the lateral border of the scapula
to Inferior facet of the greater tubercle of the humerus
Trapezius
from External occipital protuberance, nuchal ligament, and the spinous processes of the seventh cervical and all thoracic vertebrae
to Lateral third of the clavicle, the acromion, and the spine of the scapula

Movements that load it

Where this came from

Every name, attachment and action on this page is read from The Atlas’s own records — each one checked against Terminologia Anatomica, and each one linked above so you can read the full entry. Nothing here is retyped or approximated, so this page cannot drift from the collection: it is the collection, arranged by region.

The figure is different in kind: it is sourced, not drawn here and not generated. A diagram is a claim, and an invented one is a claim nobody can check — so the plates are Henry Vandyke Carter’s, engraved for the 1918 edition and long out of copyright, credited above with a link to the file so you can verify the licence yourself. Being 1918, they carry the anatomical names of their day, which do not always match the modern ones used in the records.

Plate captions were read from the Internet Archive’s scan of the 1918 edition (anatomyofhumanbo00grayrich), and the licence of every plate was checked against its own file record on Commons rather than assumed from the age of the book. The build refuses to publish a page whose plate is not public domain.
